PARTS WE ARE SUPPLYING - TO SHOP FOR PARTS GO TO THE

  SHOP FOR PARTS BUTTON

THEN CLICK ON THE PARTS YOU WANT TO BRING UP SHOPPING CART

Gear-Wing Original Fittings.


The wing strut landing gear fittings includes 8 pieces. These are make of .090 4130 steel and are band sawed, sanded and filled to final dimensions.  Remember additional material will need to be removed for size of weld at the clusters and the diagonal tubes coming into the cluster.

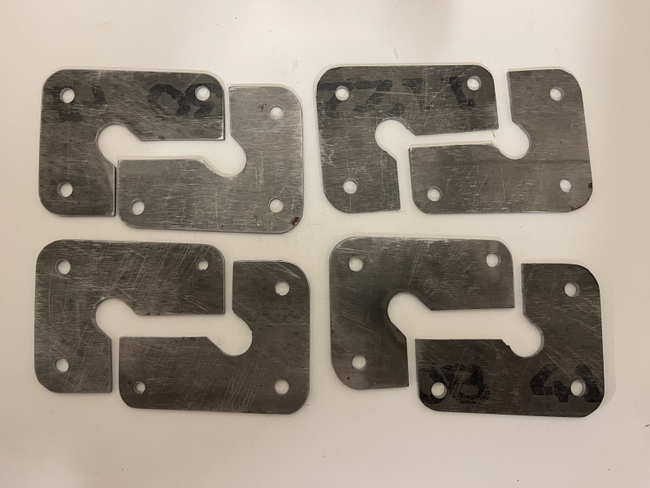

Gear-Wing Updated and Laser Cut fittings.

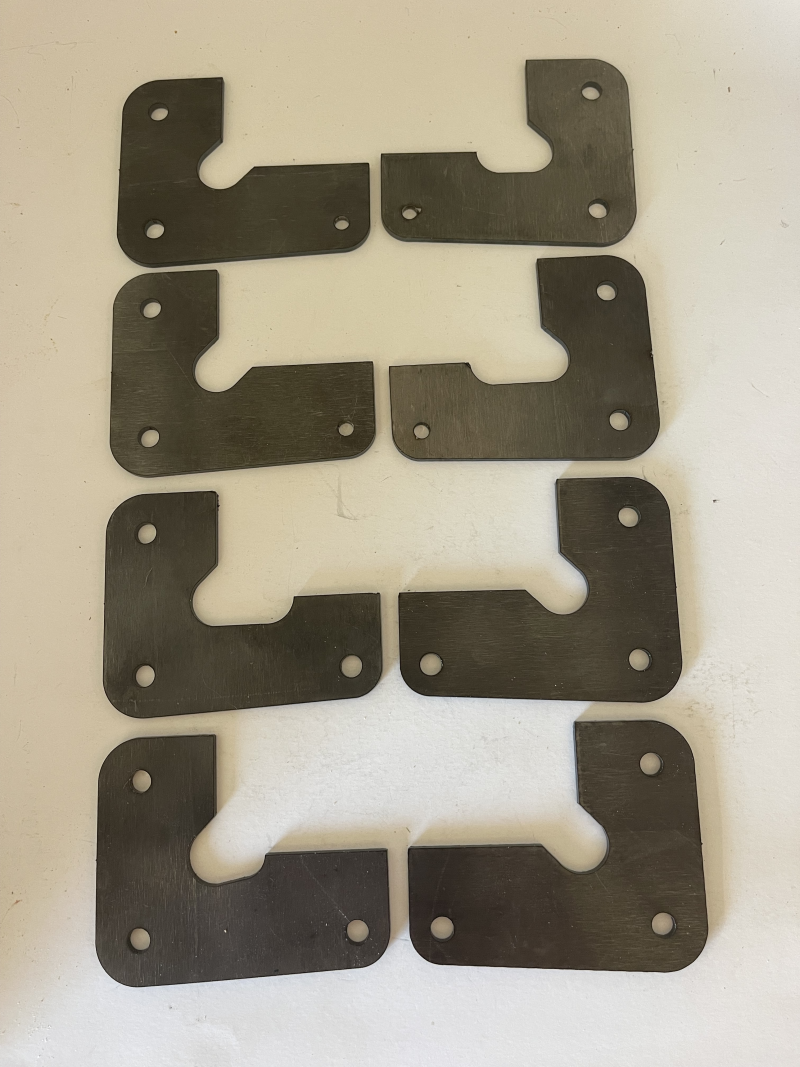

These are made of .090 thick 4130 stee. They are laser cut and have been updated to allow for the diagonal tubes as shown on plans. It may still be required to removed metal to allow for weld bead sizes at tub connections but it will be far less material to remove than the original parts as shown on plans.

New Paragraph

Hinge Set:

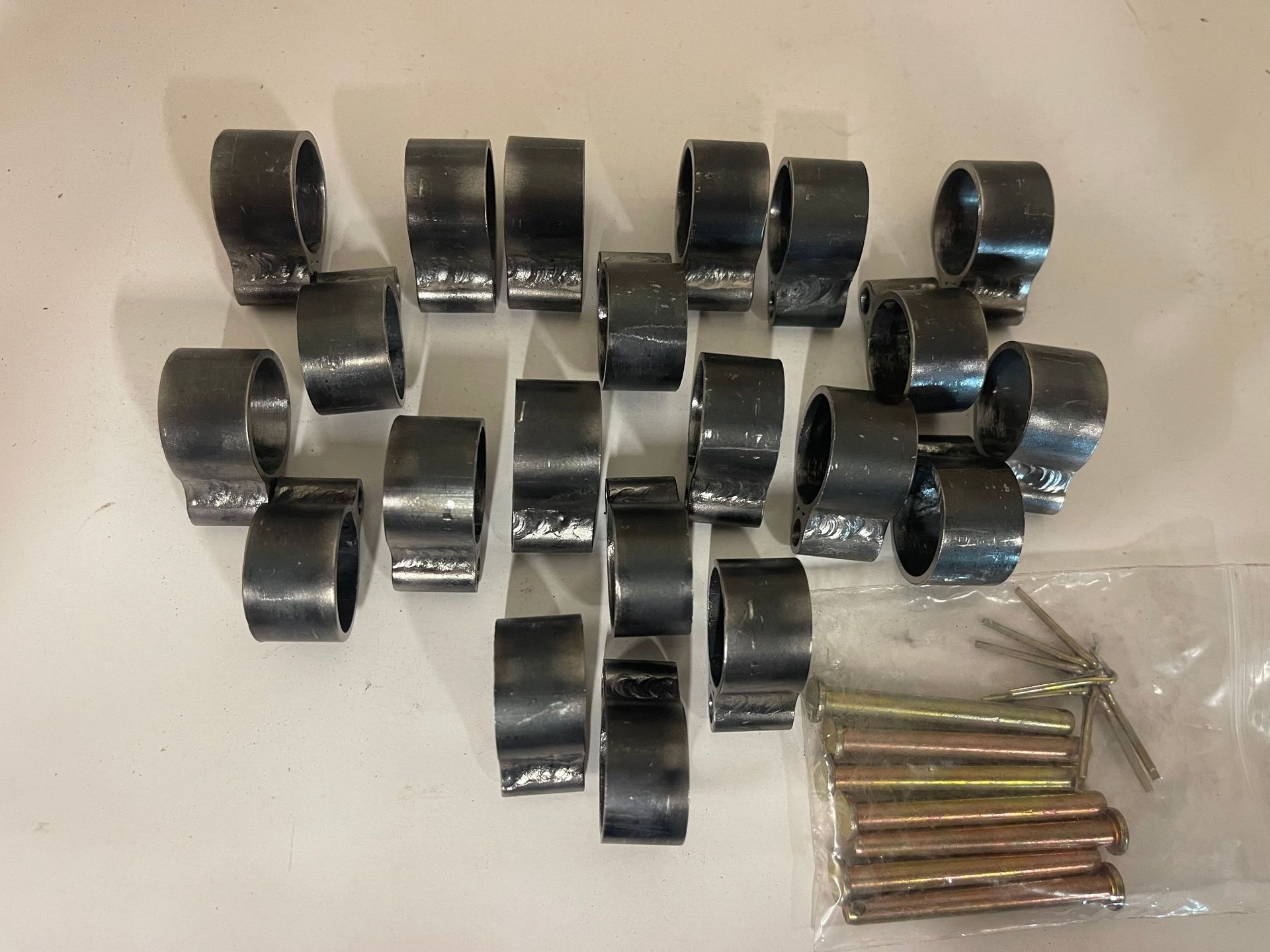

Made from 4130 steel tubing and furnished with the Pins and cotter pins these are the hinges that connect the horizontal stabilizer and elevator and Vertical Stabilizer and Rudder as shown on plans for UL and XL versions as well as the Double Eagle and Cabin Eagle.

Station #1 Bushings and Sleeves.

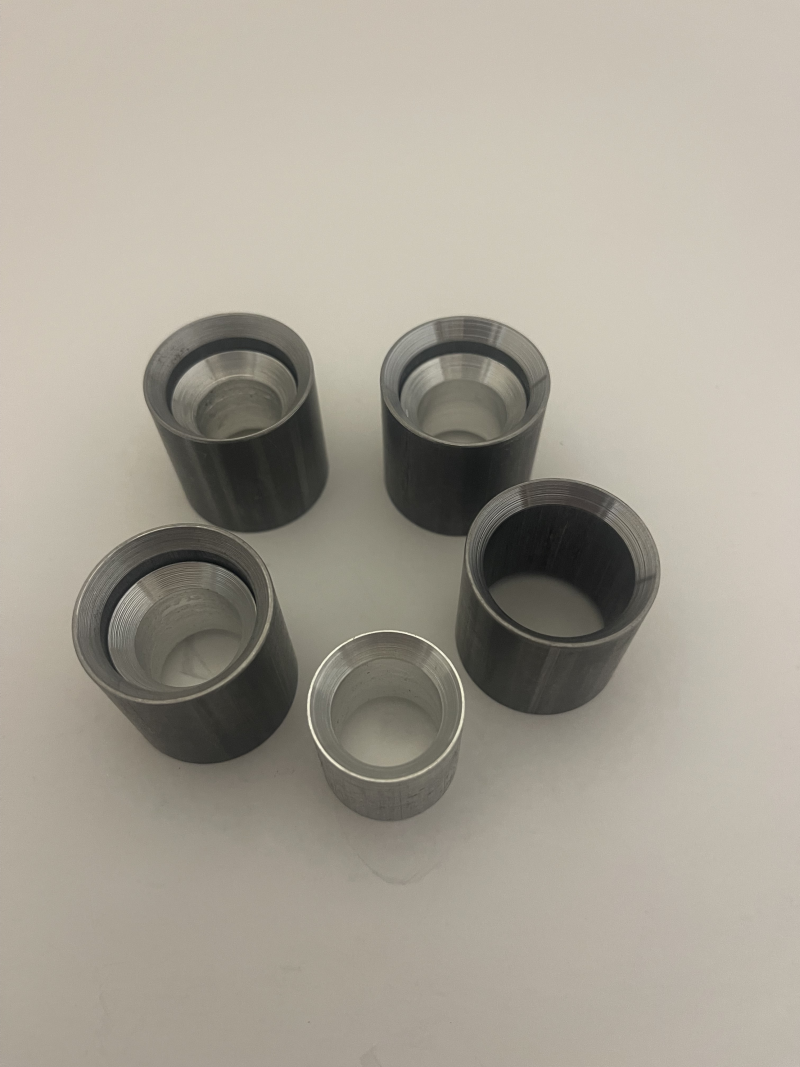

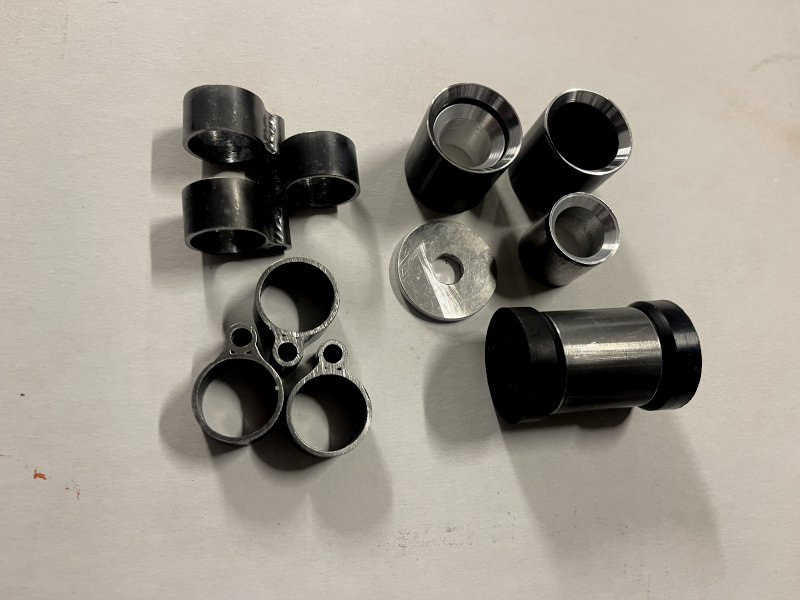

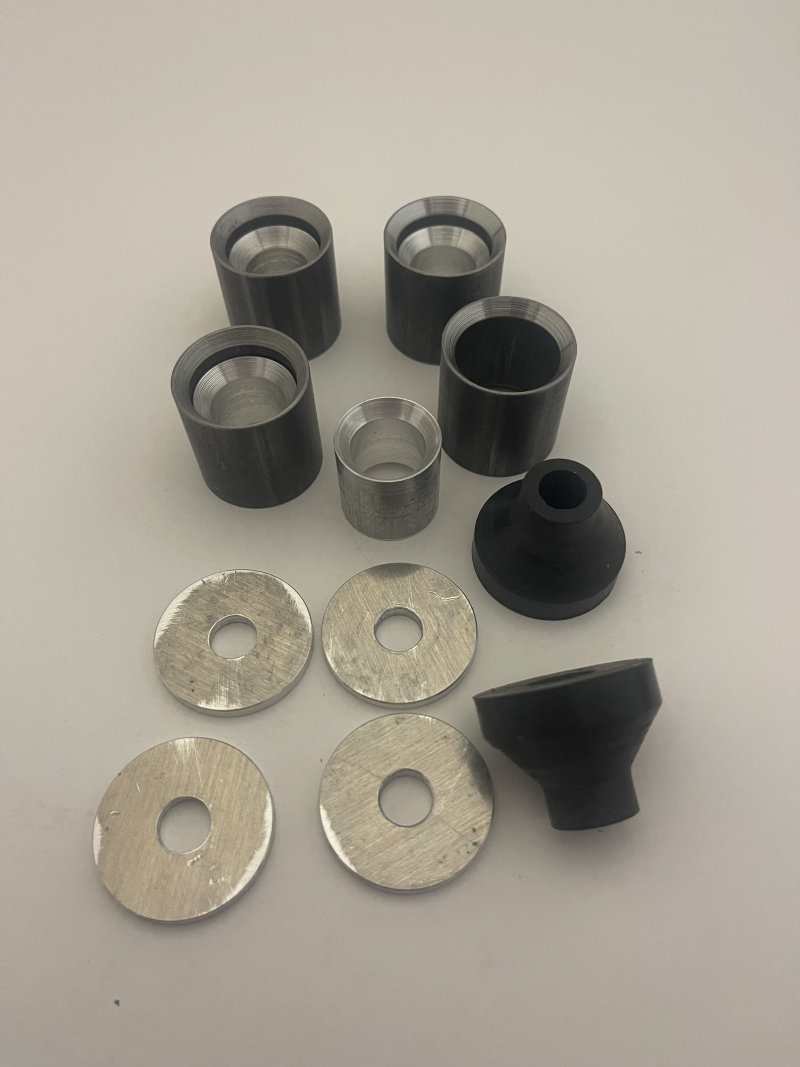

This is the Part that gets welded into Station #1, the aluminum sleeves and the rubber bushings as well as the aluminum washers make up this part. The 1/2VW engine mounts using these parts. It is critical Station #1 is matched to back of VW engine in both dimension and angles.  Otherwise broken engine mount bolts are possible.  We sell these as complete kit, without the rubber bushings and the washers are sold separately. These are called out on plans for Legal Eagle UL, XL, Double Eagle and Cabin Eagle.

Aluminum Fittings Kit:

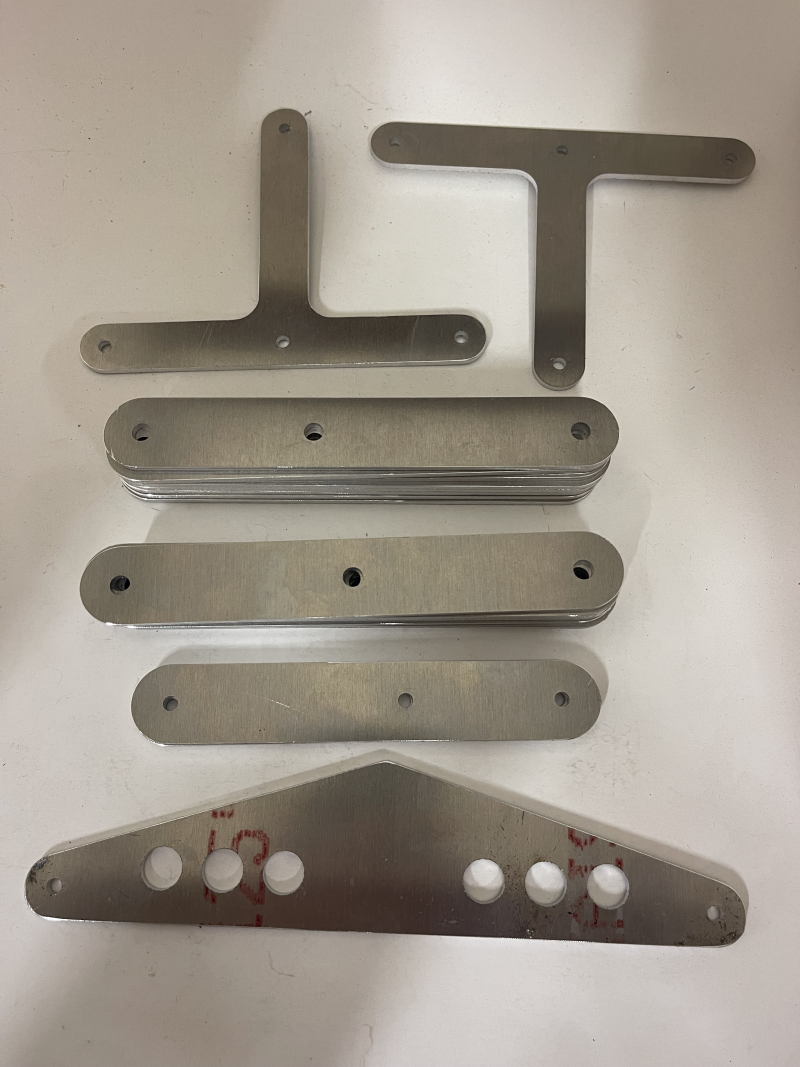

These are laser cut from 6061-T6 Aluminum and are ready to go. We supply this as complete kit and sell the parts separately, Bell cranks, rudder horn and Wing fittings. This includes the 8 fittings for wing end fittings mounting to fuselage and the 8 fittings for wing to struts.

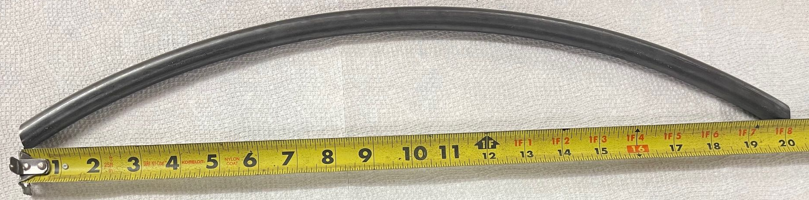

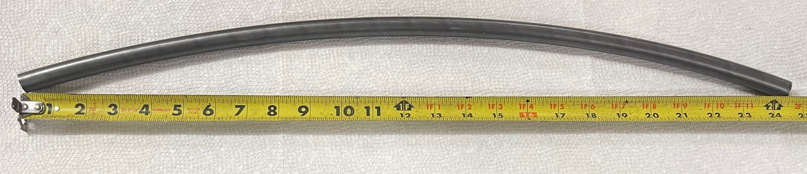

Seat Back Bow for the Legal Eagle XL


Made of 4130 5/8" x .035 and bent in 5/8" rolls this part is called out in the Legal Eagle XL Plans.  This part will work on the Original Legal Eagle however the Original Legal Eagle UL seat back bow will not work on the XL, product is not long enough and it has more of a bow.

Seat Back Bow for the Legal Eagle UL (ORIGINAL)


Made of 4130 5/8" x .035 and bent in 5/8" rolls this part is called out in the Legal Eagle XL Plans.  This part will NOT fit the Legal Eagle XL.

Engine mounts for Station 1 on XL

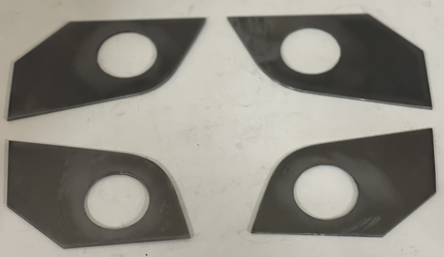

Made of .063 4130 plate and weld into corners of station 1 to mount the engine mount sleeves and bushings for the 1/2 VW engine.  These are for Legal Eagle XL.

Tail Wheel System for UL and XL

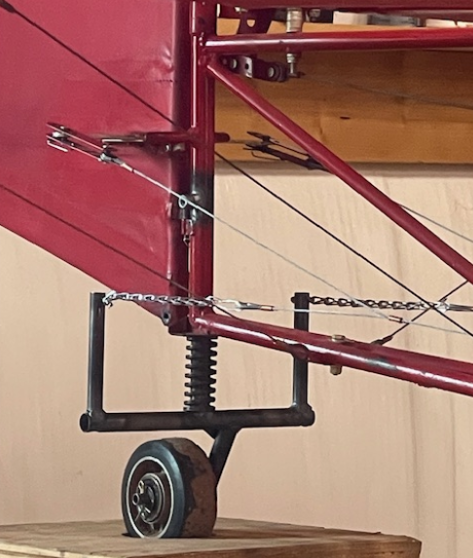

We are offering drawings for the tail wheel installation pictured here. We first saw this in 2018 at EAA Oshkosh on Denny Sleen's Legal Eagle UL. We installed this in Legal Eagle XL S R 7-1/2 and it worked great, we changed XL ORV to this design earlier this year and it is doing good. We have had several inquiries as to plans to build, so here they are. The plans are 8-1/2"x11" sheets completed in CAD. Included is a complete list of material as we used. Tail wheel shown is similar to the Sonex, skate board wheels could also be used. Show is from ORV, it was a conventional type tail wheel with fiberglass tail spring. This came out lighter and works better. Tail post is 3/4" x .035 and the 5/8" tail post tube slides inside. We applied grease on installation. The price has been increased to include shipping by mail. Price should be $ 22.00 including shipping. If ordering only this part, please select pick up and we will mail them to you.

Metal Diagonals for XL Wings

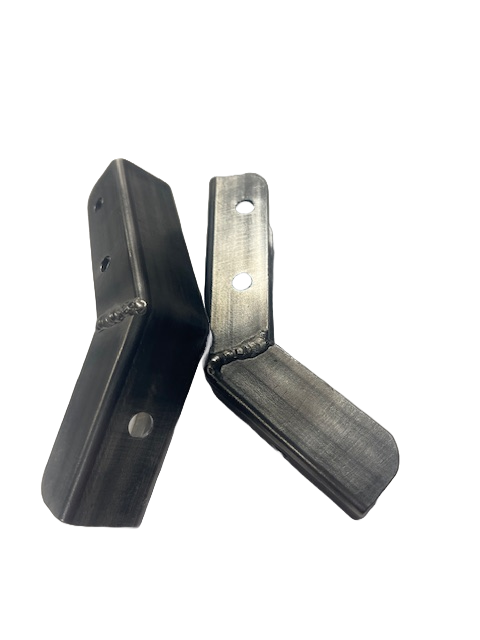

These are shown on Sheet 38 of Legal Eagle XL drawings, They attach end of 3/4" x 3/4"  spruce diagonal to inboard wing side of wing fitting.

Nose Rib Router Templates

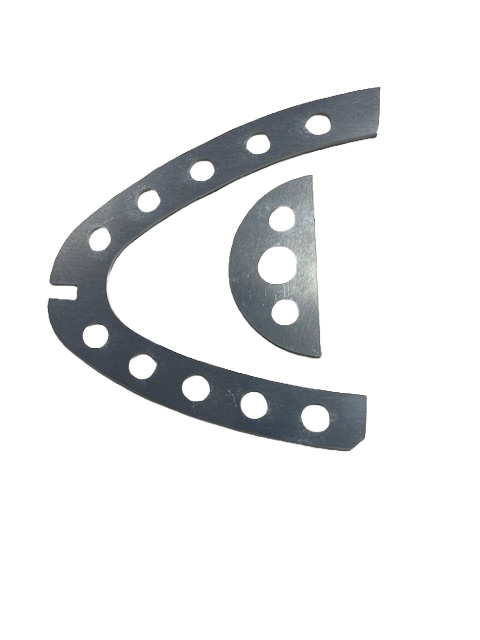

These are for Leonard Milholland's full size rib template and are made of 1/8" aluminum. They are lazer cut. Set includes Main wing nose rib and aileron nose rib.

Aileron End Rib

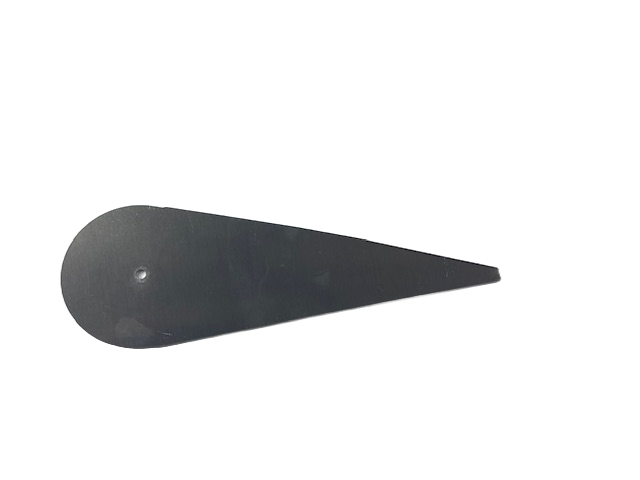

Aileron end rib for Leonard Milholland's full size rib drawing. This router template is make of 1/8" aluminum.

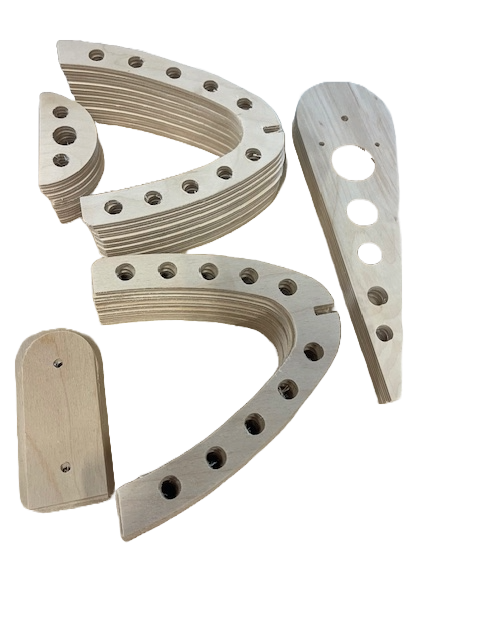

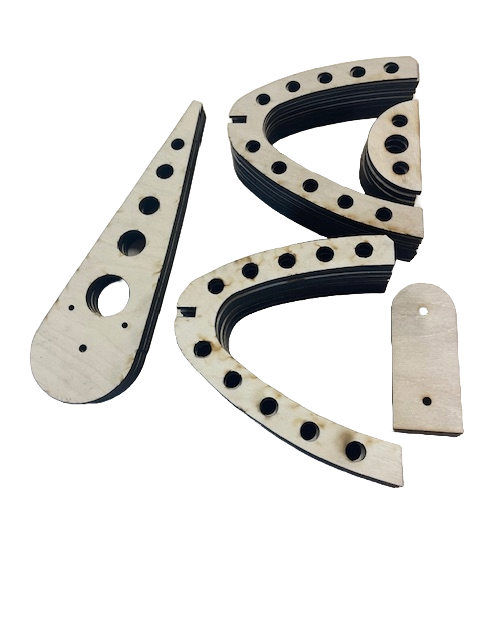

Coming Soon, wood parts lazer cut for wing building. This will be a kit including wing nose ribs, aileron nose ribs, aileron ribs, all gussets and other misc. plywood wing parts. Stay tuned and check back for updates.
